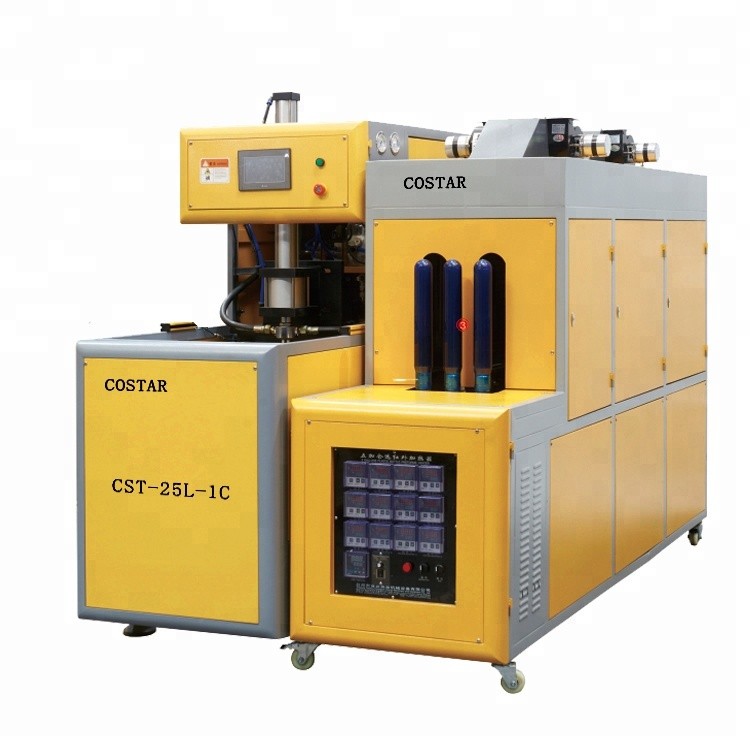

Semi automatic pet bottle Blow Molding Machine for pet preform 25l-1c

Semi automatic pet bottle Blow Molding Machine for pet preform 25l-1c

Semi automatic pet bottle Blow Molding Machine for pet preform 25l-1c
Semi automatic pet bottle Blow Molding Machine for pet preform 25l-1cSemi automatic pet bottle Blow Molding Machine for pet preform 25l-1cSemi automatic pet bottle Blow Molding Machine for pet preform 25l-1cSemi automatic pet bottle Blow Molding Machine for pet preform 25l-1cSemi automatic pet bottle Blow Molding Machine for pet preform 25l-1c
CategoriesSemi-automatic Blow Molding Machine
AlbumView larger image
BrandCOSTAR
Update Time2019-11-15
Detail Information
Quick Details

Condition:New                                                            Application:Bottle                                                    Plastic Processed:PET

Brand Name:COSTAR                                               Voltage:380V                                                           Power(W):38

Automatic:Other                                                         Weight:1250kg                                                        Certification:TUV

Warranty:1 Year                                                         Number of Cavity:1-2Cavities                                  Healing Power:38KW

Energy Saving:yes                                                     Color:any color client require                                   Clamping Force:30000N

Clamping Stroke:360mm                                            Main Machine Weight:1250kg                                 Theoretical output:200-300bph

Operating Pressure:7-9kg/cm2                                   After-sales Service Provided:Engineers available to service

Dimension(L*W*H):2180*740*1900(mm)                    Main Machine Dimensions:2180*740*1900mm

Place of Origin:Jiangsu, China (Mainland)                  Blow Moulding Type:Injection Blow Moulding

Product Specification





CST-25L-1C

Clamping Force

kg

30000

Clamping Stroke

mm

360

Stretching Stroke

mm

500

Bottom stroke

mm

/

Cavity Spacing

mm

200-300

Number of Cavity

Cavities

1-2

Carriage Unit

pcs

19

Theoretical output

bph

80-150

Total Power

kw

39

Healing Power

kw

38*1KW=38

Number of Lamp Layers

Layers

19

Operating Pressure

kg/cm2

7-9

Low Pressure Air Consumption

ltr/min

800

Blowing Pressure

kg/cm2

20-30

High Pressure Air Consumption

ltr/min

1600

Operating Pressure

kg/cm2

2-4

Temperature Range

10-12

Consumption

kcal/hr

1000

Flow Rate

ltr/min

300

Main Machine Dimensions

mm(L*W*H)

2180*740*1900

Main Machine Weight

kg

1250

Preform Loader Dimensions

mm(L*W*H)

2650*720*2800

Preform Loader Weight

kg

600



Product Details




Supply Ability

Supply Ability:400 Set/Sets per Month

Packaging & Delivery

Packaging Details              Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port                                   Shanghai Port/Ningbo Port
