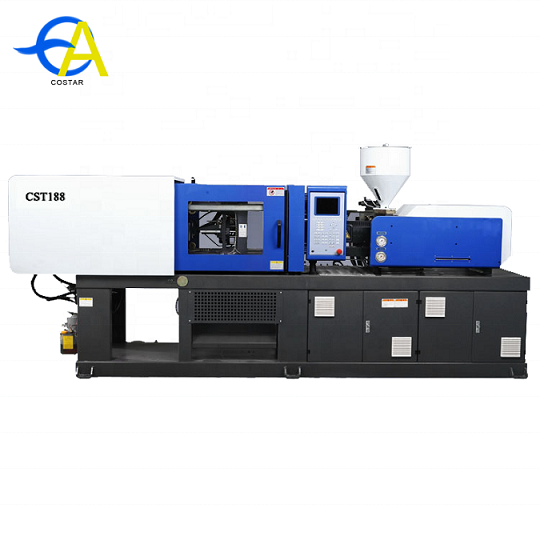

Machine weight 4.3 ton desktop pet preform injection molding machine

Machine weight 4.3 ton desktop pet preform injection molding machine

Machine weight 4.3 ton desktop pet preform injection molding machine
Machine weight 4.3 ton desktop pet preform injection molding machineMachine weight 4.3 ton desktop pet preform injection molding machineMachine weight 4.3 ton desktop pet preform injection molding machineMachine weight 4.3 ton desktop pet preform injection molding machine
CategoriesTop Sale Products
AlbumView larger image
BrandCOSTAR
Clamping Force1580KN
StyleHorizontal
Model NumberCST188
AutomaticYes
Plastic TypeThermoplastic
Place of OriginJiangsu, China (Mainland)
Update Time2019-07-23
Detail Information

Quick Details

Distance between Tie Bars:510*460mm                        Condition: New                                          Type:  Tube Head Injection

Injection Weight:206-328Ton                                          Injection Rate:144                                     Opening Stroke:550mm

Power(W):10.95kw                                                         Certification:TUV CE                                 After-sales Service :Video technical support

Warranty:1 Year                                                              Machine weight:4.3                                   Machine dimension(L*W*H):5.0 x 1.23 x 1.975

machine heating power:10.95                                        Space between tie-bars:262-378g             Screw L/D ratio: 24.3-19.2

screw diameter:40mm-48mm                                         product material can use:PP/PE/ABS/PS/PC/PA/POM/PET/PVC/ect

injection pressure:123-229Mpa                                      Color:any color client require

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.






Product parameter

CST188/630





a

b

c

Injection Unit



Screw diameter

mm

40

45

48

Screw L/D ratio

L/D

24.7

22

20.6

Injection capacity in theory

cm3

282

358

407

Injection weight(ps)

g

262

330

378



oz

9.24

11.6

13.3

Injection pressure

MPa

224

176

155

Injection rate

g/s

100

126

144

Plasticizing capacity

g/s

14

19

23

Screw speed

rpm

160

Clamping Unit



Clamping force

kN

1880

Moving mould-plate stroke

mm

450

Max.Mould height

mm

530

Min.Mould height

mm

180

Space between tie-bars

mm

510x460

Hydraulic ejector force

kN

53

Hydraulic ejector stroke

mm

130

Ejector number

n

5

Other



Pump pressure

MPa

16

Motor/Driving power

kW

15/18.5

Heating capacity

kW

12.95

Machine dimension

m

5.39 x 1.29x2.05

Machine weight

t

5.2

Oil tank capacity

L

272



Supply Ability

Supply Ability:400 Set/Sets per Month injection molding machine



Packaging & Delivery

Packaging Details       1 Set Machine weight 4.3 ton desktop pet preform injection molding machine of Wooded pallet package,
                                    standard ocean shipping package of injection moldin
Port                             Shanghai Port/Ningbo Port
