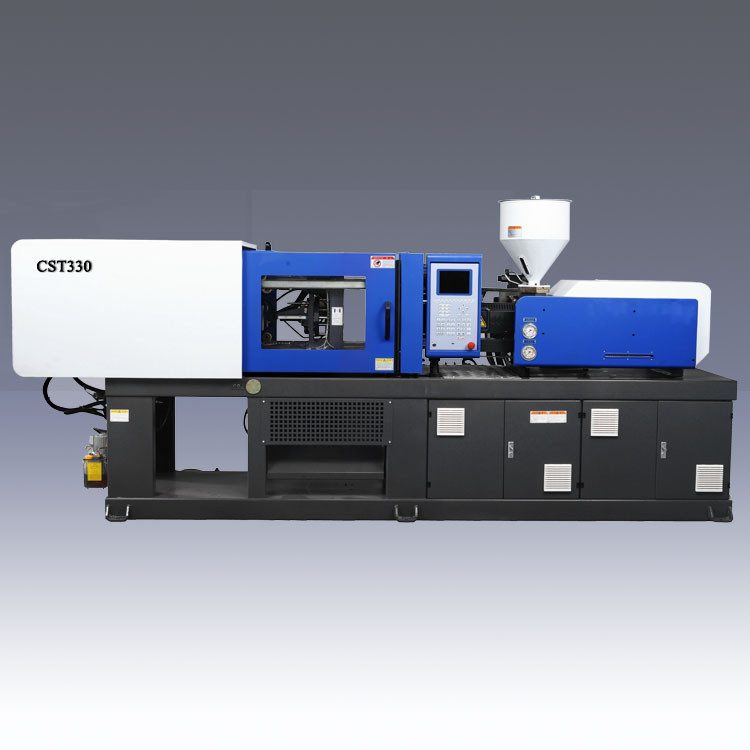

CST330-Ⅱ/2000 injection molding machine

CST330-Ⅱ/2000 injection molding machine

CST330-Ⅱ/2000 injection molding machine
CST330-Ⅱ/2000 injection molding machineCST330-Ⅱ/2000 injection molding machineCST330-Ⅱ/2000 injection molding machineCST330-Ⅱ/2000 injection molding machineCST330-Ⅱ/2000 injection molding machine
CategoriesBest selling injection molding machine
BrandCOSTAR
ModelCST330-Ⅱ/2000
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Download DOCpdf icon
Update TimeDecember 3,2022
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST330-/2000





a

b

c

Injection Unit



Screw diameter

mm

65

70

75

Screw L/D ratio

L/D

22.6

21

19.6

Injection capacity in theory

cm3

1128

1308

1502

Injection weight(ps)

g

1026

1200

1367

oz

36.1

41.9

48.2

Injection pressure

MPa

182

157

137

Injection rate

g/s

245

284

326

Plasticizing capacity

g/s

33

41

49

Screw speed

rpm

136

Clamping Unit



Clamping force

kN

3300

Moving mould-plate stroke

mm

660

Max.Mould height

mm

750

Min.Mould height

mm

250

Space between tie-bars

mm

720x670

Hydraulic ejector force

kN

125

Hydraulic ejector stroke

mm

180

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

30/37

Heating capacity

kW

23.15

Machine dimension

m

7.20 x 1.77 x 2.18

Machine weight

t

11.5

Oil tank capacity

L

680



































Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day

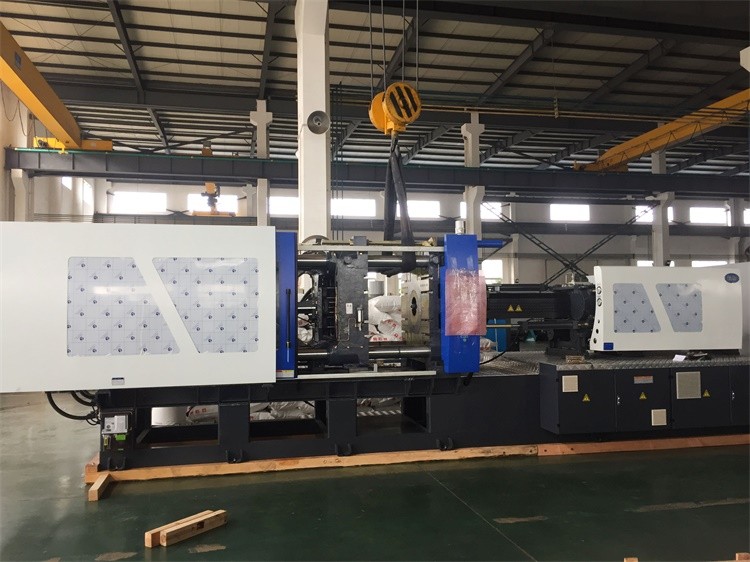

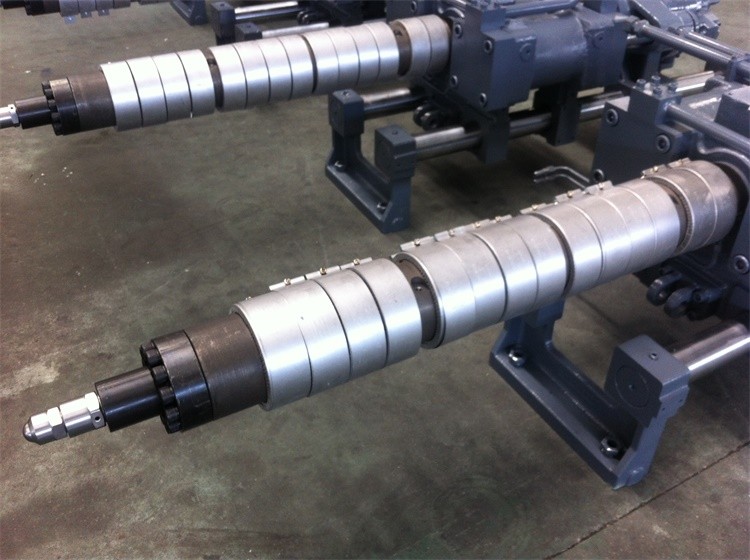

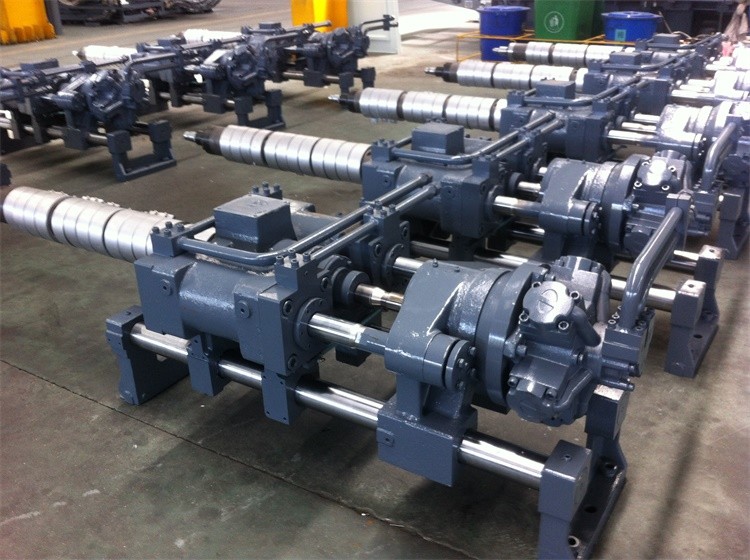

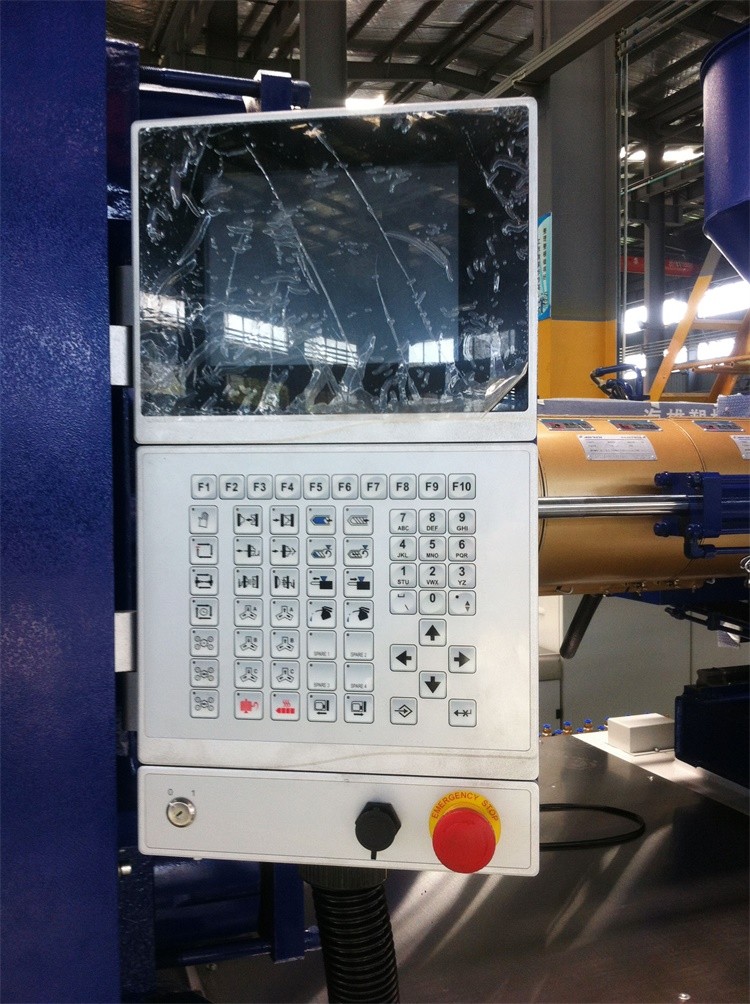

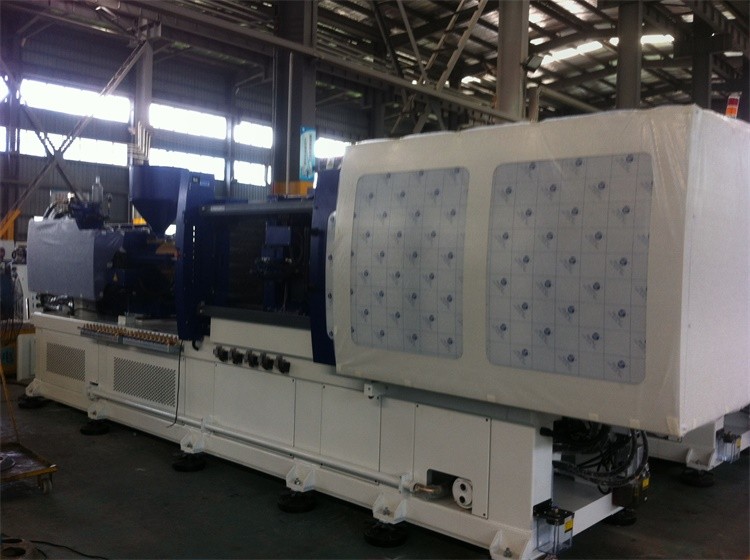

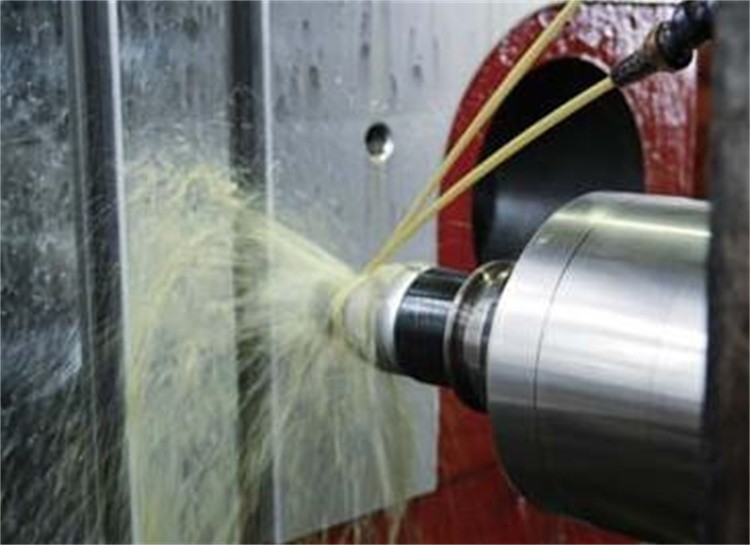

Parts show

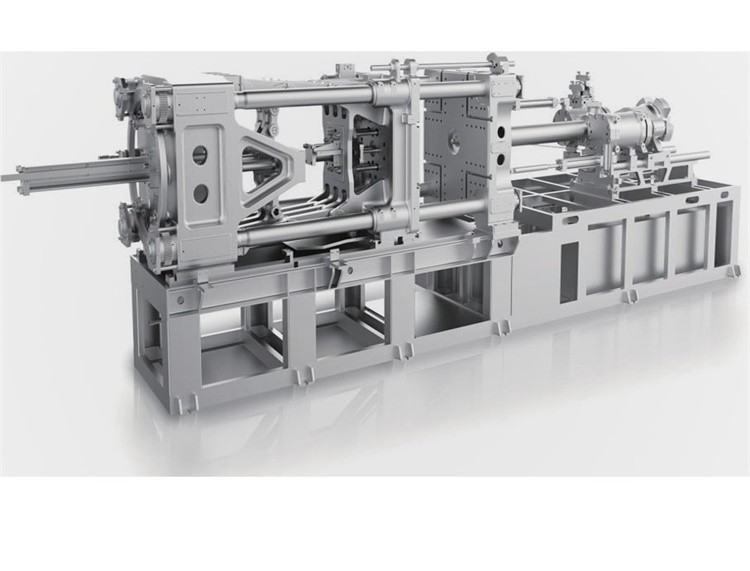

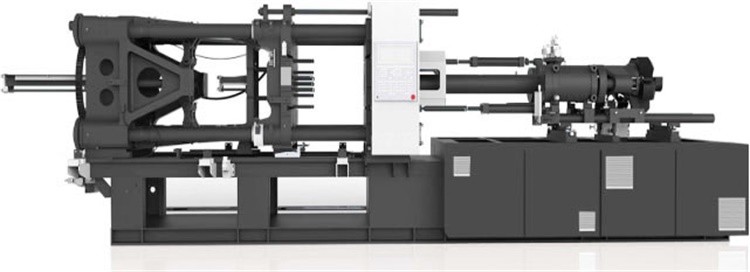

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.


Costar CST330-Ton pet preform injection molding machineCostar CST330-Ton pet preform injection molding machine
