CST2000/16100 plastic injection molding machine

CST2000/16100 plastic injection molding machine

CST2000/16100  plastic injection molding machine
CST2000/16100  plastic injection molding machineCST2000/16100  plastic injection molding machineCST2000/16100  plastic injection molding machineCST2000/16100  plastic injection molding machineCST2000/16100  plastic injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
Clamping Force20000KN
StyleHorizontal
Place of originJiangsu, China (Mainland)
Update Time2019-05-23
Detail Information
Quick Details

Plastic Type:Thermoplastic                             Automatic:Yes                                                      Injection Weight:7851-11892g

Injection Rate:1162-1899g/s                           Opening Stroke:1560mm                                     Power(W):103.5kw

Certification:TUV CE                                       Machine weight:128T                                          Machine dimension(L*W*H):15.6m*3.50m*4.00m

Machine heating power:103.5kw                     Space between tie-bars:1620*1480mm              Screw L/D ratio:19.2-23.7L/D

Screw diameter:130-160mm                            Product material can use:PP/PE/ABS/PS/PC/PA/POM/PET/PVC

Injection pressure:123-186Mpa                       Warranty:1 year                                                  Color:any color client require

After-sales Service Provided:Engineers available to service

Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port Port :                     Shanghai Port/Ningbo Port


2000 ton plastic injection molding machine price


CST2000/16100



A

B

c

d

Injection Unit



Screw diameter

mm

130

140

150

160

Screw L/D ratio

L/D

23.7

22

20.5

19.2

Injection capacity in theory

cm3

8627

10005

11486

13069

Injection weight(ps)

g

7851

9105

10452

11892

oz

276.9

321.1

368.6

419.4

Injection pressure

MPa

186

161

140

123

Injection rate

g/s

1162

1348

1548

1800

Plasticizing capacity

g/s

141

150

158

162

Screw speed

rpm

95

Clamping Unit



Clamping force

kN

20000

Moving mould-plate stroke

mm

1560

Max.Mould height

mm

1560

Min.Mould height

mm

710

Space between tie-bars

mm

1620x1480

Hydraulic ejector force

kN

480

Hydraulic ejector stroke

mm

400

Ejector number

n

33

Other



Pump pressure

MPa

16

Motor/Driving power

kW

45 + 45 + 45/37 x 4

Heating capacity

kW

103.5

Machine dimension

m

15.60 x 3.50x4.00

Machine weight

t

128

Oil tank capacity

L

3500

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.

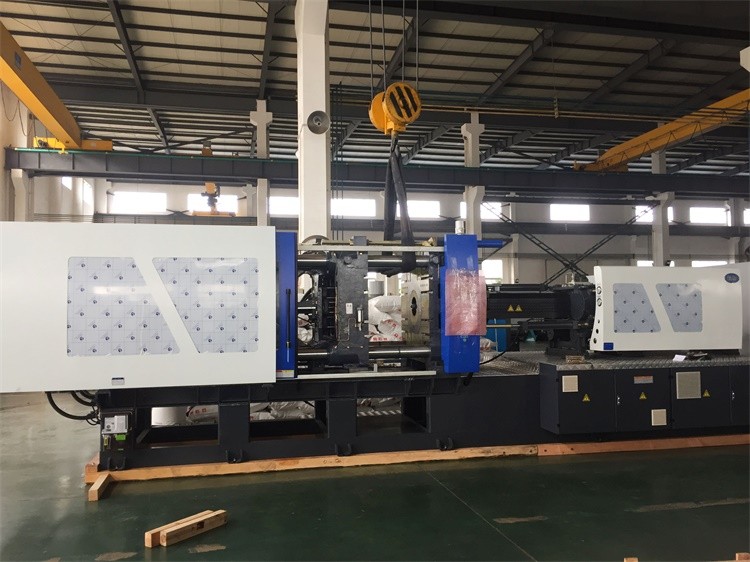

2000 ton plastic injection molding machine price

2000 ton plastic injection molding machine price

2000 ton plastic injection molding machine price
