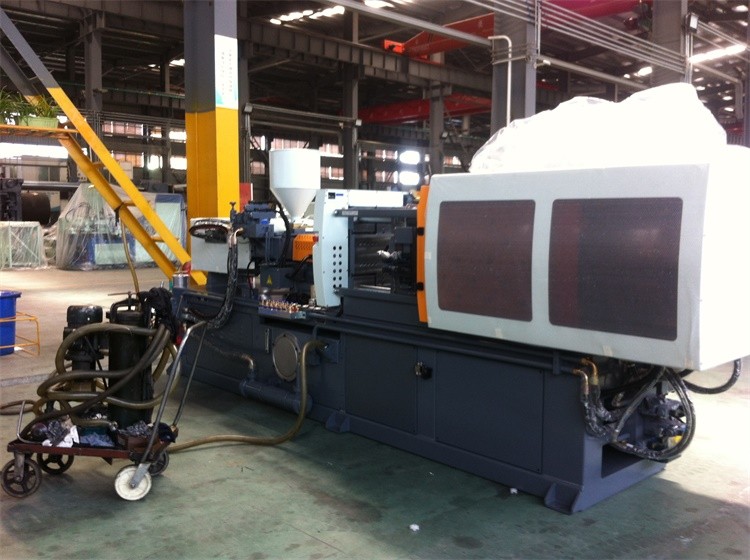

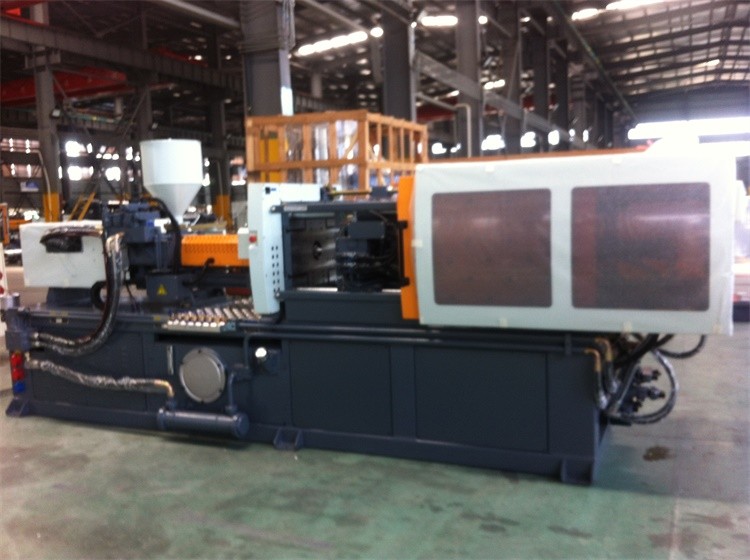

CST218PET injection molding machine
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960082.jpg?x-oss-process=image/resize,m_pad,l_350/quality,Q_90)
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960082.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960083.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960084.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960085.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST218PET injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6960086.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Detail Information
CST218PET | ||
Injection Unit | ||
Screw diameter | mm | 65 |
Screw L/D ratio | L/D | 24 |
Injection capacity in theory | cm3 | 962 |
Injection weight(ps) | g | 1019 |
oz | 36 | |
Injection pressure | MPa | 143 |
Injection rate | g/s | 316 |
Plasticizing capacity | g/s | 76 |
Screw speed | rpm | 150 |
Clamping Unit | ||
Clamping force | kN | 2180 |
Moving mould-plate stroke | mm | 520 |
Max.Mould height | mm | 580 |
Min.Mould height | mm | 200 |
Space between tie-bars | mm | 520x520 |
Hydraulic ejector force | kN | 80 |
Hydraulic ejector stroke | mm | 150 |
Ejector number | n | 9 |
Other | ||
Pump pressure | MPa | 16 |
Motor/Driving power | kW | 22/30 |
Heating capacity | kW | 22.7 |
Machine dimension | m | 6.5 x 1.34x2.125 |
Machine weight | t | 6.9 |
Oil tank capacity | L | 281 |
Supply Ability
Supply Ability: 400 Set/Sets per Month
Packaging & Delivery
Packaging Details : Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port : Shanghai Port/Ningbo Port
Lead time: 30-45day
![](https://icdn.tradew.com/file/201810/1573165/jpg/6960081.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413110.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413114.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413115.jpg?x-oss-process=image/quality,Q_90)
Machine Feature
1 Enhanced clamping mechanism to meet requirements for efficient production.
2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.
3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.
4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.
5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.
6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,
provide more professional lubrication protection and extend mechanical life.
7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
