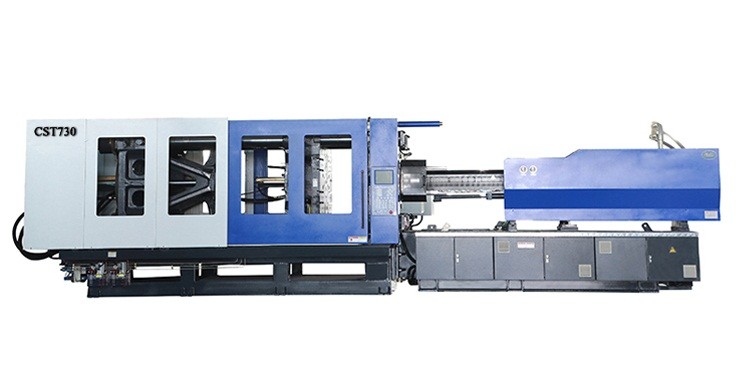

CST730-Ⅱ/5500 injection molding machine

CST730-Ⅱ/5500 injection molding machine

CST730-Ⅱ/5500 injection molding machine
CST730-Ⅱ/5500 injection molding machineCST730-Ⅱ/5500 injection molding machineCST730-Ⅱ/5500 injection molding machineCST730-Ⅱ/5500 injection molding machineCST730-Ⅱ/5500 injection molding machine
CategoriesProduction injection molding machine
BrandCOSTAR
ModelCST730-Ⅱ/5500
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
After-sales ServiceEngineers available to service machine
Download DOCpdf icon
Update TimeMar 19,2024
Detail Information

Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


730 ton plastic injection molding machine price



CST730/5500



A

B

C

D

Injection Unit



Screw diameter

mm

90

95

100

105

Screw L/D ratio

L/D

23.2

22

20.9

19.9

Injection capacity in theory

cm3

2861

3188

3534

3894

Injection weight(ps)

g

2603

2901

3216

3543

oz

91.8

102.3

113.4

124.9

Injection pressure

MPa

195

175

158

143

Injection rate

g/s

556

620

687

757

Plasticizing capacity

g/s

76

85

90

98

Screw speed

rpm

110

Clamping Unit



Clamping force

kN

7300

Moving mould-plate stroke

mm

950

Max.Mould height

mm

960

Min.Mould height

mm

400

Space between tie-bars

mm

1000x950

Hydraulic ejector force

kN

200

Hydraulic ejector stroke

mm

280

Ejector number

n

17

Other



Pump pressure

MPa

16

Motor/Driving power

kW

37 + 30/37x2

Heating capacity

kW

48.8

Machine dimension

m

10.79x2.45x3.31

Machine weight

t

34

Oil tank capacity

L

1315

Machine Feature:



1 Enhanced clamping mechanism to meet requirements for efficient production.

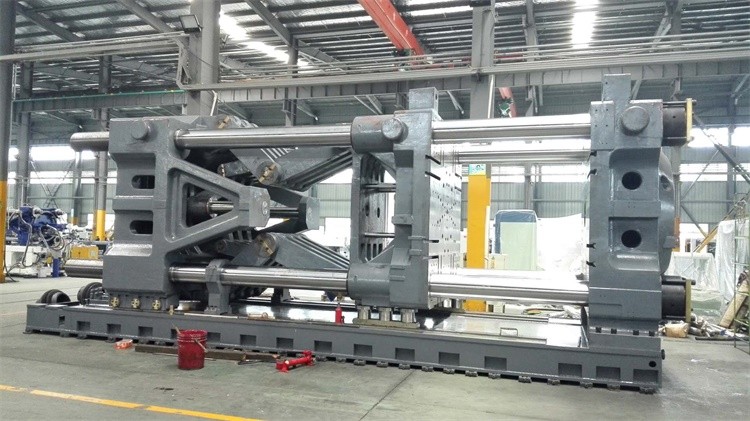

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

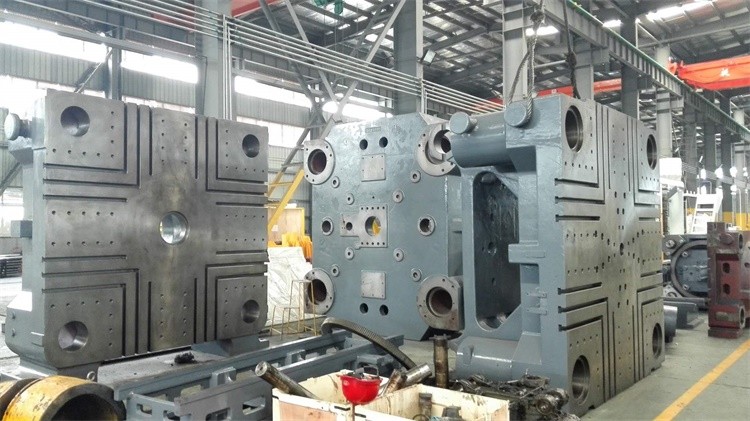

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
