CST410PET injection molding machine

CST410PET injection molding machine

CST410PET injection molding machine
CST410PET injection molding machineCST410PET injection molding machineCST410PET injection molding machineCST410PET injection molding machineCST410PET injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-11-17
Detail Information

Supply Ability


Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Set 410 ton pet preform injection molding machine price pet bottle injection molding machine of Wooded pallet package, standard ocean shipping package
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45 days

410 ton pet preform injection molding machine price

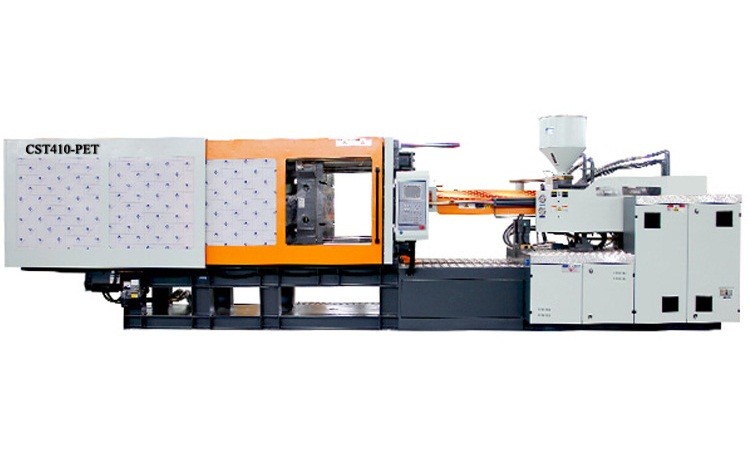

CST410-PET

Injection Unit



Screw diameter

mm

85

Screw L/D ratio

L/D

24

Injection capacity in theory

cm3

2099

Injection weight(ps)

g

2225

oz

78.6

Injection pressure

MPa

135

Injection rate

g/s

503

Plasticizing capacity

g/s

120

Screw speed

rpm

160

Clamping Unit



Clamping force

kN

4100

Moving mould-plate stroke

mm

700

Max.Mould height

mm

800

Min.Mould height

mm

280

Space between tie-bars

mm

770x720

Hydraulic ejector force

kN

180

Hydraulic ejector stroke

mm

1180

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

45/30+23

Heating capacity

kW

32.85

Machine dimension

m

8.21 x 1.96x2.35

Machine weight

t

14.2

Oil tank capacity

L

687

Machine Feature:



1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
