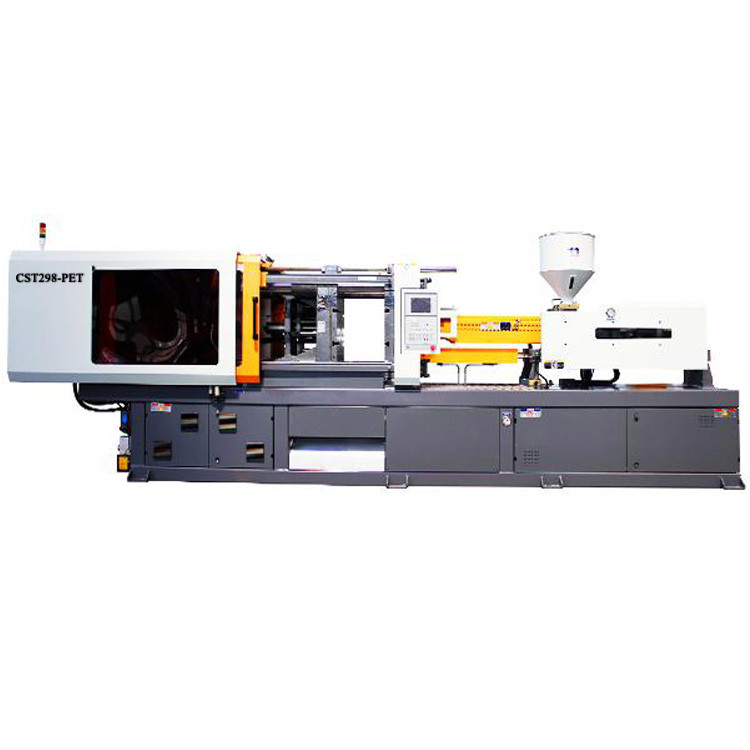

CST298PET injection molding machine

CST298PET injection molding machine

CST298PET injection molding machine
CST298PET injection molding machineCST298PET injection molding machineCST298PET injection molding machineCST298PET injection molding machineCST298PET injection molding machine
CategoriesProduction injection molding machine
BrandCOSTAR
ModelCST298PET
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Download DOCpdf icon
Update TimeMar 19,2024
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST298PET

Injection Unit



Screw diameter

mm

75

Screw L/D ratio

L/D

24

Injection capacity in theory

cm3

1502

Injection weight(ps)

g

1592

oz

56.3

Injection pressure

MPa

137

Injection rate

g/s

376

Plasticizing capacity

g/s

85

Screw speed

rpm

160

Clamping Unit



Clamping force

kN

2980

Moving mould-plate stroke

mm

600

Max.Mould height

mm

690

Min.Mould height

mm

230

Space between tie-bars

mm

605x590

Hydraulic ejector force

kN

125

Hydraulic ejector stroke

mm

150

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

37/37

Heating capacity

kW

24.73

Machine dimension

m

7.35x1.75 x 2.15

Machine weight

t

9

Oil tank capacity

L

415


































Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day
