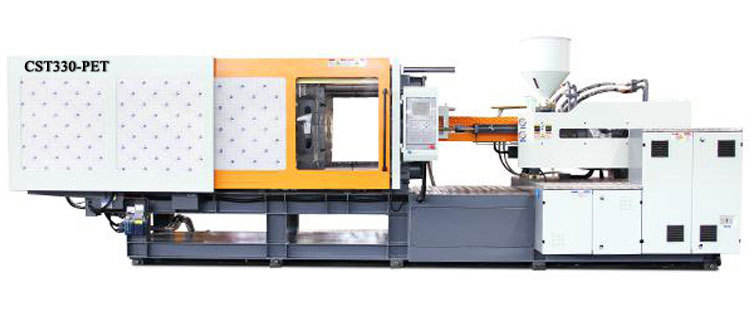

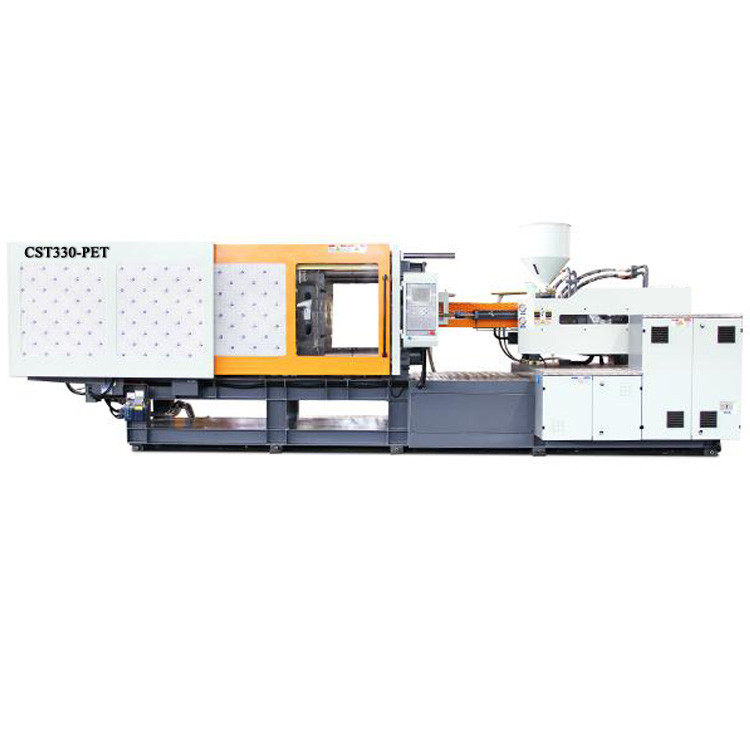

CST330PET injection molding machine

CST330PET injection molding machine

CST330PET injection molding machine
CST330PET injection molding machineCST330PET injection molding machineCST330PET injection molding machineCST330PET injection molding machineCST330PET injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-07-23
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST330PET

Injection Unit



Screw diameter

mm

80

Screw L/D ratio

L/D

24

Injection capacity in theory

cm3

1859

Injection weight(ps)

g

1970

oz

69.6

Injection pressure

MPa

152

Injection rate

g/s

446

Plasticizing capacity

g/s

105

Screw speed

rpm

160

Clamping Unit



Clamping force

kN

3300

Moving mould-plate stroke

mm

660

Max.Mould height

mm

750

Min.Mould height

mm

250

Space between tie-bars

mm

720x670

Hydraulic ejector force

kN

180

Hydraulic ejector stroke

mm

180

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

37/30+23

Heating capacity

kW

31.15

Machine dimension

m

7.9 x 1.77x2.18

Machine weight

t

12

Oil tank capacity

L

680































Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


Machine Feature

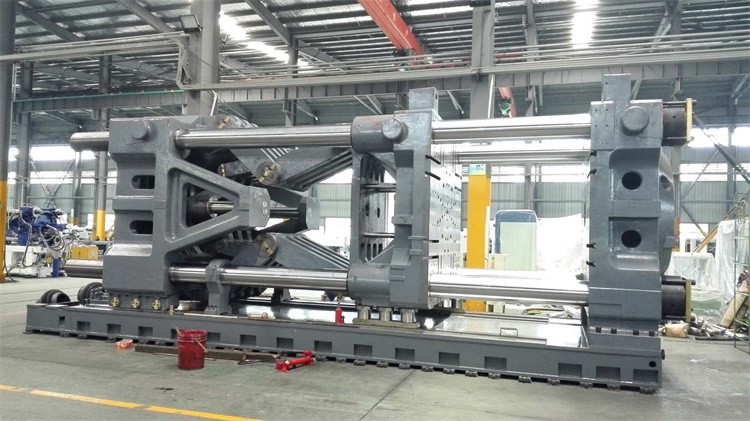

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

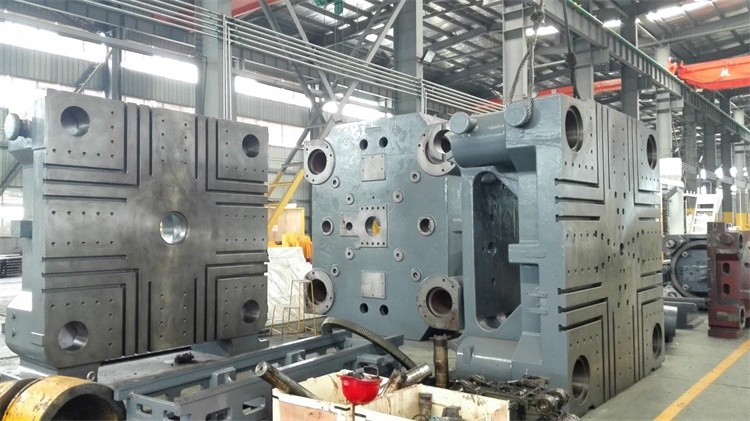

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
