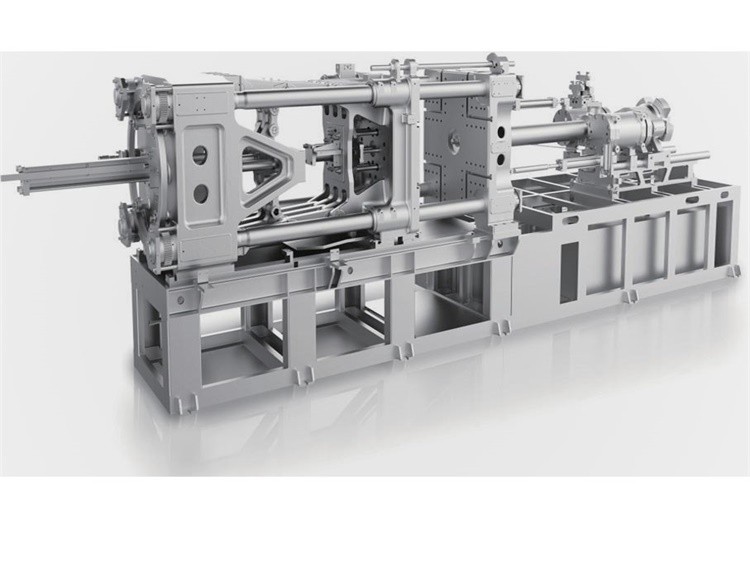

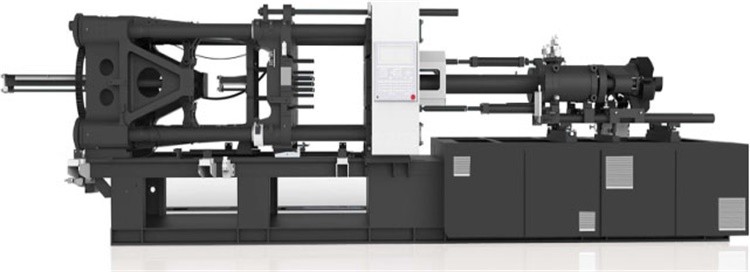

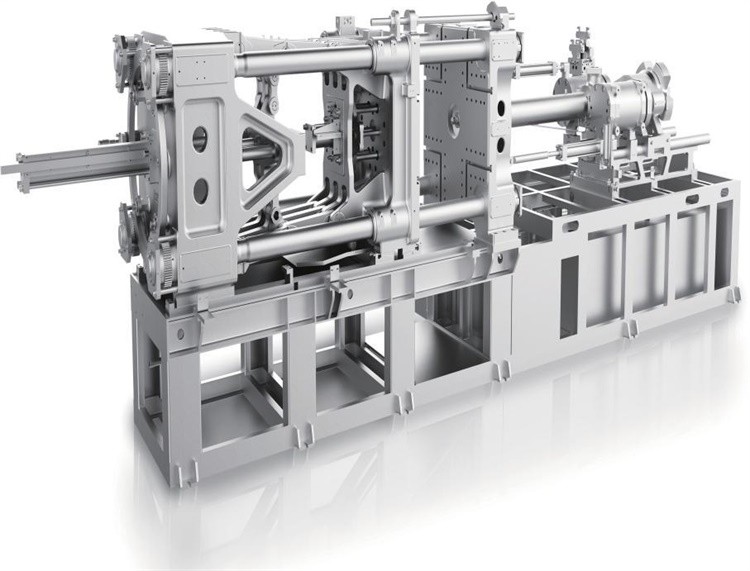

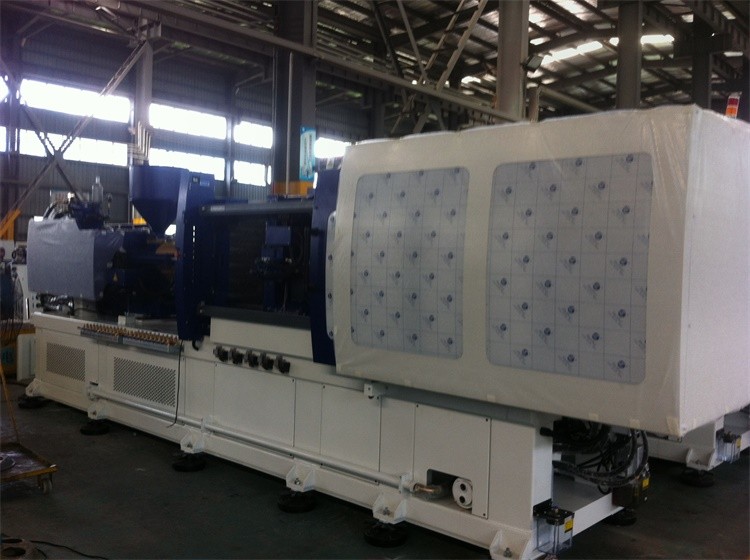

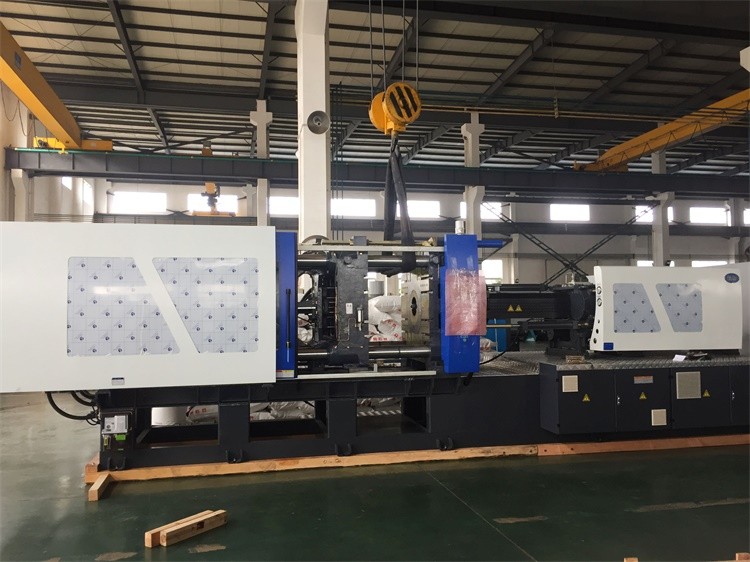

Costar 2500 injection molding machine

Costar 2500 injection molding machine

Costar 2500 injection molding machine
Costar 2500 injection molding machineCostar 2500 injection molding machineCostar 2500 injection molding machineCostar 2500 injection molding machineCostar 2500 injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-11-15
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine





CST2500/41000





A

B

C

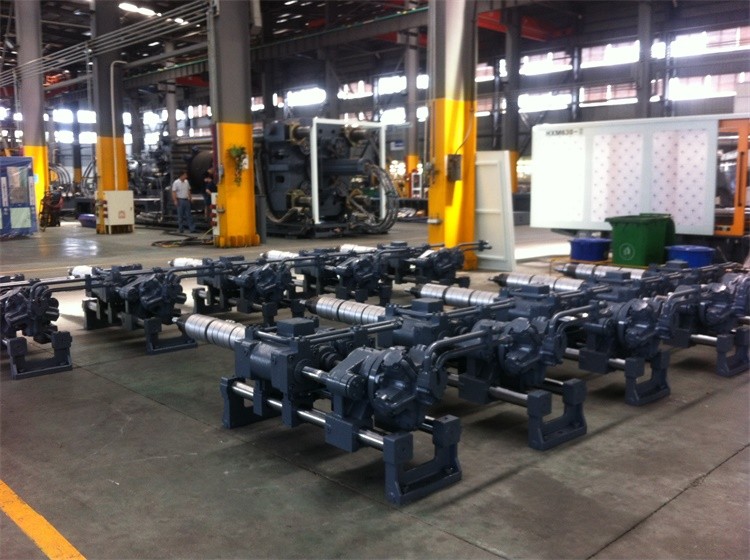

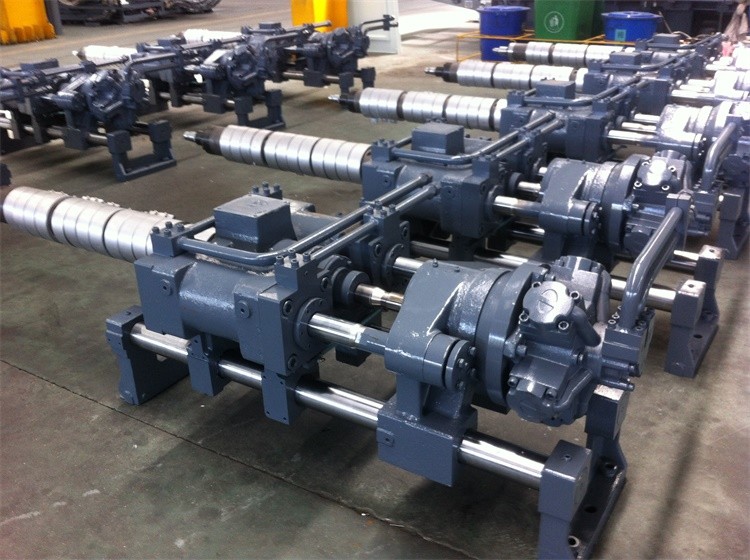

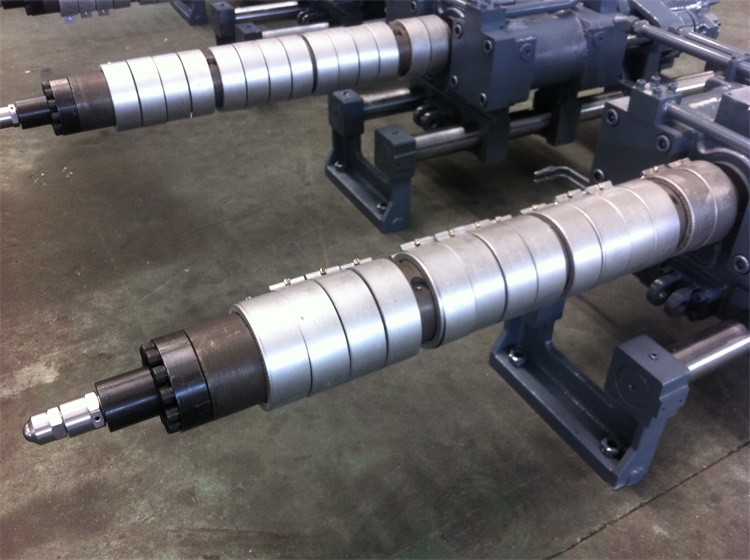

Injection Unit



Screw diameter

mm

170

185

200

Screw L/D ratio

L/D

23.9

22

20.3

Injection capacity in theory

cm3

24059

28493

33300

Injection weight(ps)

g

21894

25928

30303

oz

772.2

914.5

1068.8

Injection pressure

MPa

170

144

123

Injection rate

g/s

1384

1551

1813

Plasticizing capacity

g/s

170

190

220

Screw speed

rpm

60

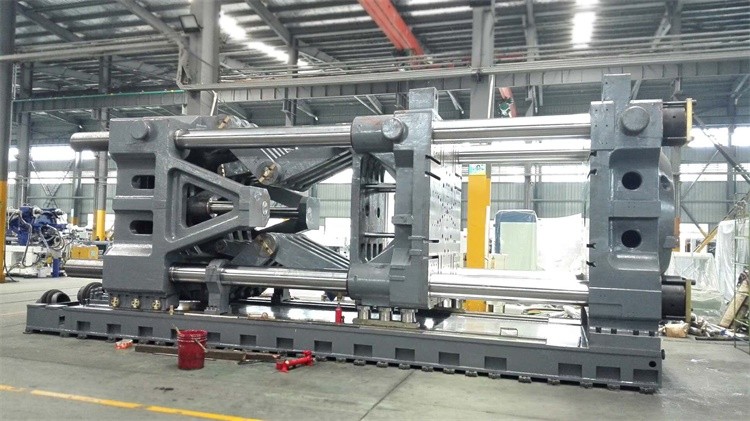

Clamping Unit



Clamping force

kN

25000

Moving mould-plate stroke

mm

1900

Max.Mould height

mm

1800

Min.Mould height

mm

800

Space between tie-bars

mm

1850x1700

Hydraulic ejector force

kN

480

Hydraulic ejector stroke

mm

450

Ejector number

n

33

Other



Pump pressure

MPa

16

Motor/Driving power

kW

45x4

Heating capacity

kW

170

Machine dimension

m

19.50 x 4.00x5.20

Machine weight

t

175

Oil tank capacity

L

3700


Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
