CST258/920 injection molding machine

CST258/920 injection molding machine

CST258/920 injection molding machine
CST258/920 injection molding machineCST258/920 injection molding machineCST258/920 injection molding machineCST258/920 injection molding machineCST258/920 injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-07-23
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST258/920





a

b

c

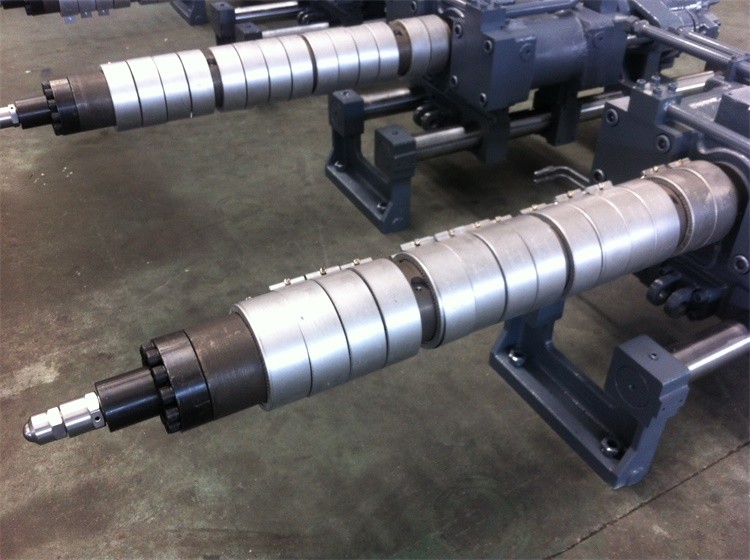

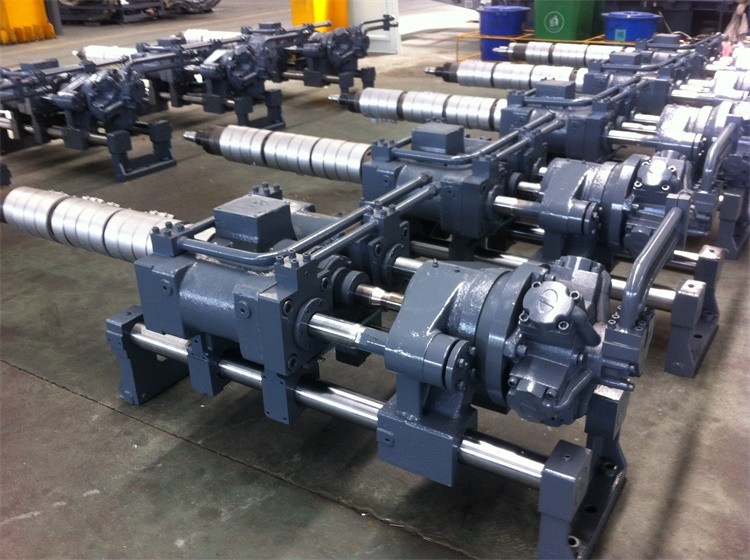

Injection Unit



Screw diameter

mm

50

55

60

Screw L/D ratio

L/D

22

20

18.3

Injection capacity in theory

cm3

451

546

650

Injection weight(ps)

g

420

508

605

oz

14.8

17.9

21.3

Injection pressure

MPa

205

169

142

Injection rate

g/s

190

230

275

Plasticizing capacity

g/s

27

35

44

Screw speed

rpm

180

Clamping Unit



Clamping force

kN

2580

Moving mould-plate stroke

mm

550

Max.Mould height

mm

600

Min.Mould height

mm

230

Space between tie-bars

mm

570x570

Hydraulic ejector force

kN

80

Hydraulic ejector stroke

mm

150

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

22/30

Heating capacity

kW

16.83

Machine dimension

m

5.825 x 1.61 X2.17

Machine weight

t

7.6

Oil tank capacity

L

311

































Supply Ability

Supply Ability:   400 Set/Sets per month plastic bobbin injection molding machine

Packaging & Delivery

Packaging Details :   Set 158 ton pet perform plastic bobbin injection molding machine price of Wooded pallet package,
                                  standard ocean shipping package of injection molding machine
Port :                         Shanghai Port/Ningbo Port



Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
