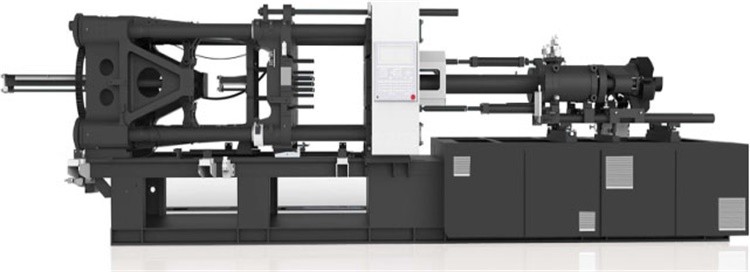

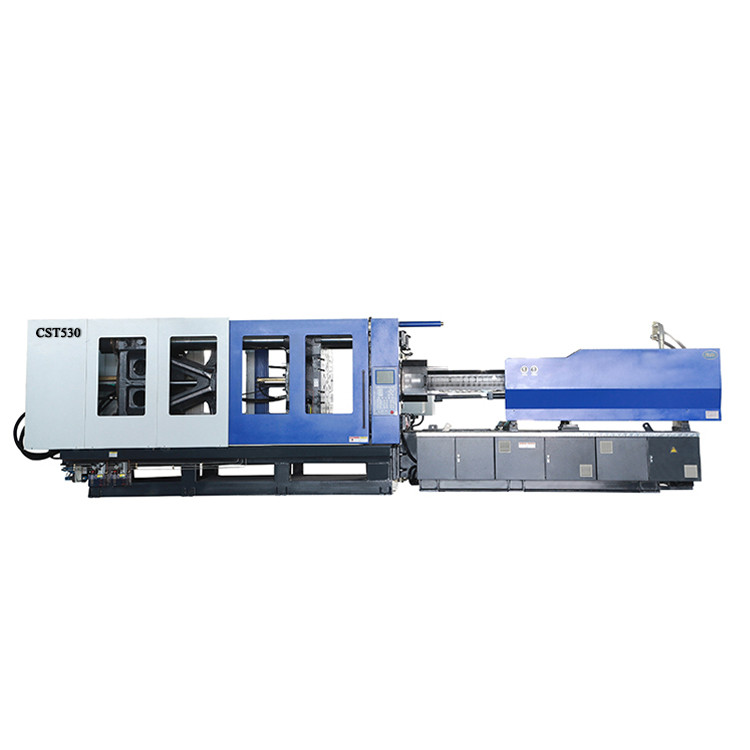

CST530-Ⅰ/3100 injection molding machine

CST530-Ⅰ/3100 injection molding machine

CST530-Ⅰ/3100 injection molding machine
CST530-Ⅰ/3100 injection molding machineCST530-Ⅰ/3100 injection molding machineCST530-Ⅰ/3100 injection molding machineCST530-Ⅰ/3100 injection molding machineCST530-Ⅰ/3100 injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
product material can usePP/PE/ABS/PS/PC/PA/POM
Update Time2019-07-23
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST530-/3100



a

B

Injection Unit



Screw diameter

mm

75

80

Screw L/D ratio

L/D

21.3

20

Injection capacity in theory

cm3

1634

1860

Injection weight(ps)

g

1495

1701

oz

52.7

60.0

Injection pressure

MPa

191

168

Injection rate

g/s

382

435

Plasticizing capacity

g/s

52

57

Screw speed

rpm

150

Clamping Unit



Clamping force

kN

5300

Moving mould-plate stroke

mm

830

Max.Mould height

mm

830

Min.Mould height

mm

330

Space between tie-bars

mm

860x810

Hydraulic ejector force

kN

181

Hydraulic ejector stroke

mm

230

Ejector number

n

17

Other



Pump pressure

MPa

16

Motor/Driving power

kW

45/30x2

Heating capacity

kW

26.45

Machine dimension

m

8.1 x 2.14x2.5

Machine weight

t

19.7

Oil tank capacity

L

969

































Supply Ability

Supply Ability:  400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


Machine Feature

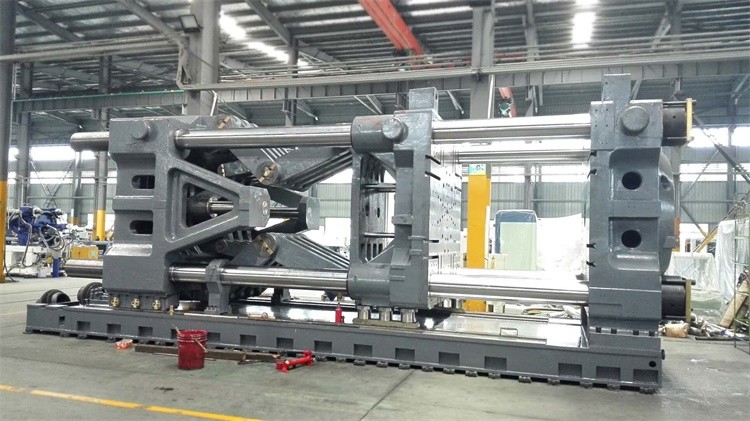

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

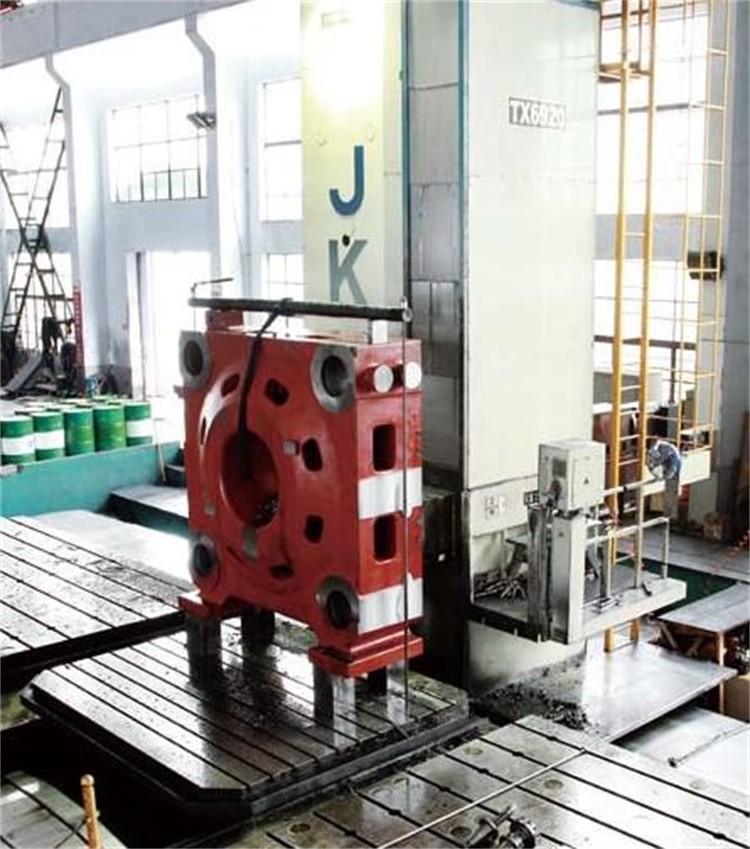

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

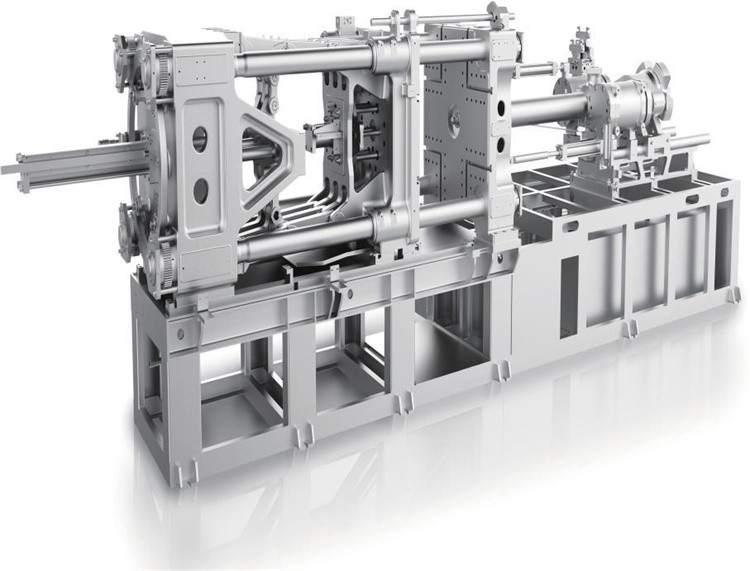

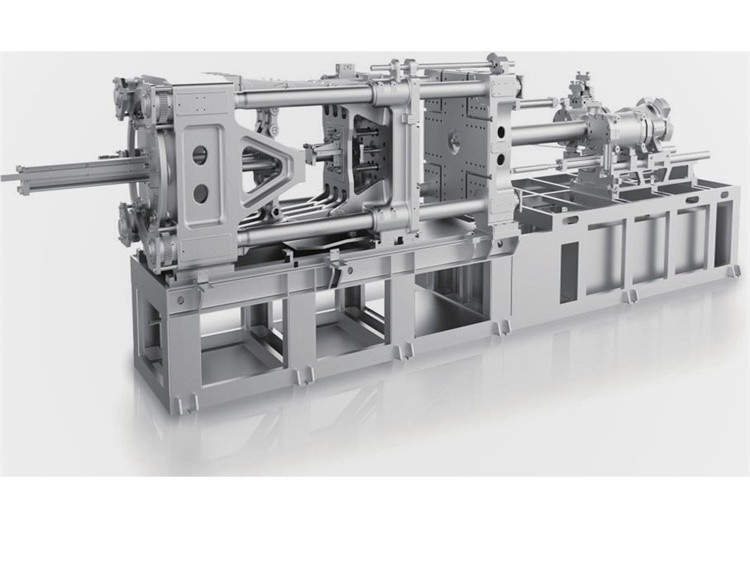

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
