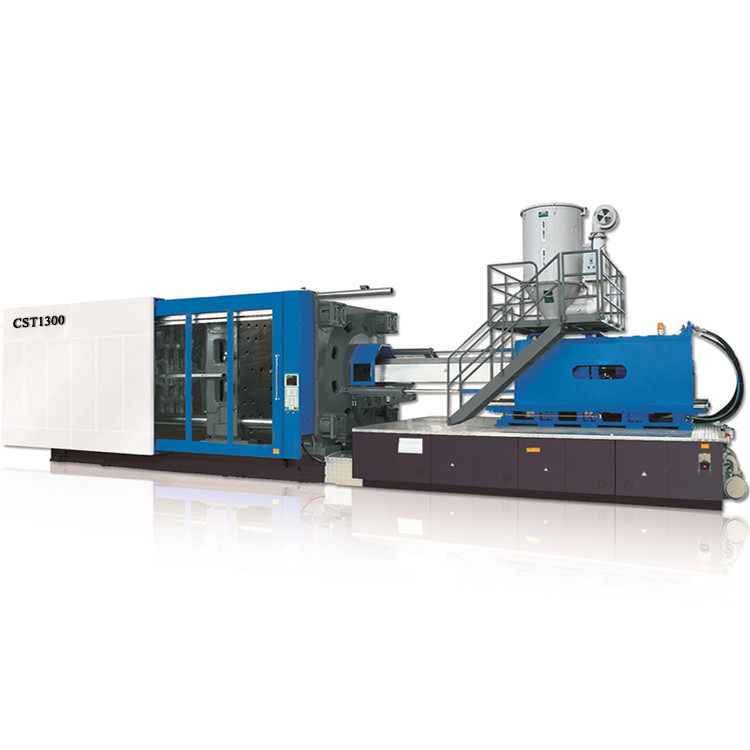

CST1300/12000 injection molding machine
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959766.jpg?x-oss-process=image/resize,m_pad,l_350/quality,Q_90)
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959766.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959767.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959768.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959769.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![CST1300/12000 injection molding machine](https://icdn.tradew.com/file/201810/1573165/jpg/6959770.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Detail Information
CST1300/12000 | |||||
A | B | C | D | ||
Injection Unit | |||||
Screw diameter | mm | 110 | 120 | 130 | 140 |
Screw L/D ratio | L/D | 26.2 | 24 | 22.2 | 20.6 |
Injection capacity in theoiy | cm3 | 5892 | 7012 | 8229 | 9544 |
Injection weight(ps) | P | 5361 | 6380 | 7488 | 8685 |
oz | 189.1 | 225.0 | 264.1 | 306.3 | |
Injection pressure | MPa | 204 | 172 | 151 | 130 |
Injection rate | g/s | 778 | 926 | 1087 | 1260 |
Plasticizing capacity | g/s | 115 | 128 | 145 | 175 |
Screw speed | rpm | 95 | |||
Clamping Unit | |||||
Clamping force | kN | 12500 | |||
Moving mould-plate stroke | mm | 1300 | |||
Max.Mould height | mm | 1300 | |||
Min.Mould height | mm | 550 | |||
Space between tie-bars | mm | 1260x1260 | |||
Hydraulic ejector force | kN | 260 | |||
Hydraulic ejector stroke | mm | 400 | |||
Ejector number | n | 21 | |||
Other | |||||
Pump pressure | MPa | 16 | |||
Motor/Driving power | kW | 55 + 55/37x3 | |||
Heating capacity | kW | 87.95 | |||
Machine dimension | m | 13.43x2.75x3.5 | |||
Machine weight | t | 65 | |||
Oil tank capacity | L | 1745 |
Supply Ability
Supply Ability: 400 Set/Sets per Month
Packaging & Delivery
Packaging Details : Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port : Shanghai Port/Ningbo Port
Lead time: 30-45day
![](https://icdn.tradew.com/file/201810/1573165/jpg/6959782.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413179.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413180.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201810/1573165/jpg/7413182.jpg?x-oss-process=image/quality,Q_90)
Machine Feature
1 Enhanced clamping mechanism to meet requirements for efficient production.
2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.
3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.
4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.
5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.
6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,
provide more professional lubrication protection and extend mechanical life.
7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
Hot tags:hybrid injection molding machine
