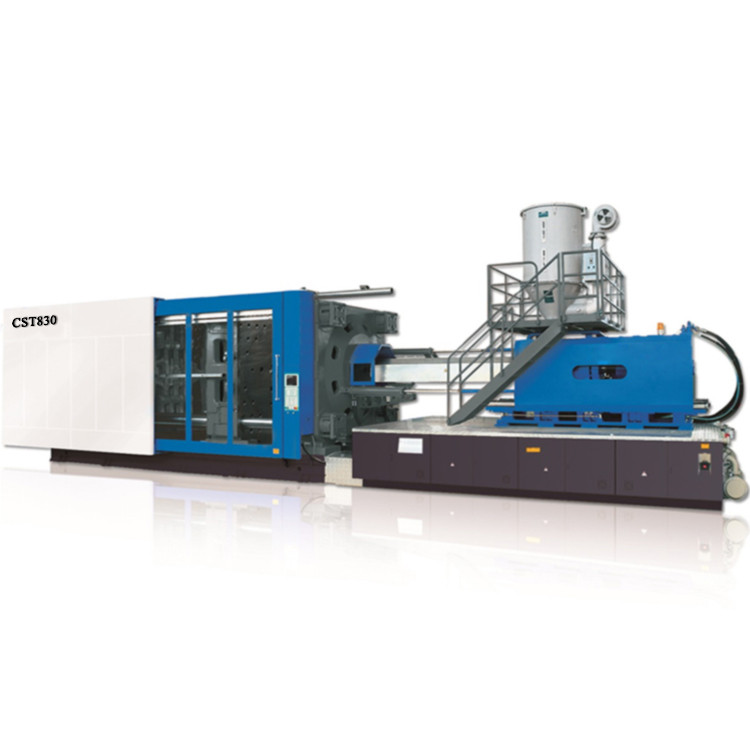

CST830/6700 injection molding machine

CST830/6700 injection molding machine

CST830/6700 injection molding machine
CST830/6700 injection molding machineCST830/6700 injection molding machineCST830/6700 injection molding machineCST830/6700 injection molding machineCST830/6700 injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-07-23
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST830/6700





a

b

c

Injection Unit



Screw diameter

mm

95

100

105

Screw L/D ratio

L/D

22

20.9

19.9

Injection capacity in theoiy

cm3

3849

4264

4701

Injection weight(ps)

g

3502

3880

4278

oz

123.5

136.8

150.8

Injection pressure

MPa

175

158

143

Injection rate

g/s

640

687

785

Plasticizing capacity

g/s

85

90

98

Screw speed

rpm

110

Clamping Unit



Clamping force

kN

8300

Moving mould-plate stroke

mm

1080

Max.Mould height

mm

1050

Min.Mould height

mm

400

Space between tie-bars

mm

1070 x 970

Hydraulic ejector force

kN

200

Hydraulic ejector stroke

mm

300

Ejector number

n

13

Other



Pump pressure

MPa

16

Motor/Driving power

kW

37+30/37x2

Heating capacity

kW

48.8

Machine dimension

m

11.3x2.65x3.4

Machine weight

t

42

Oil tank capacity

L

1315



































Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

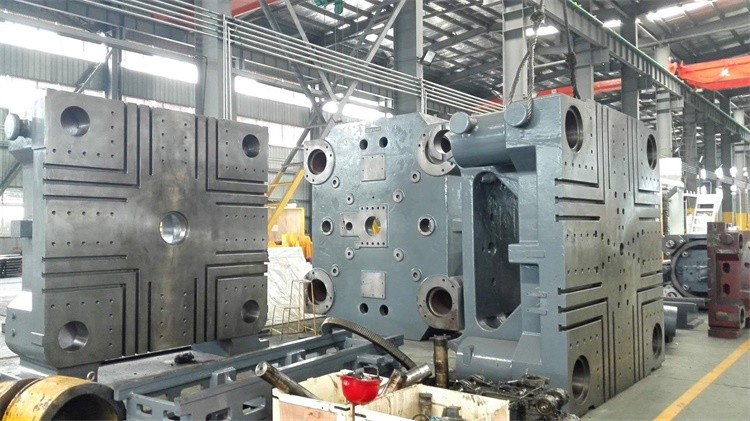

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
