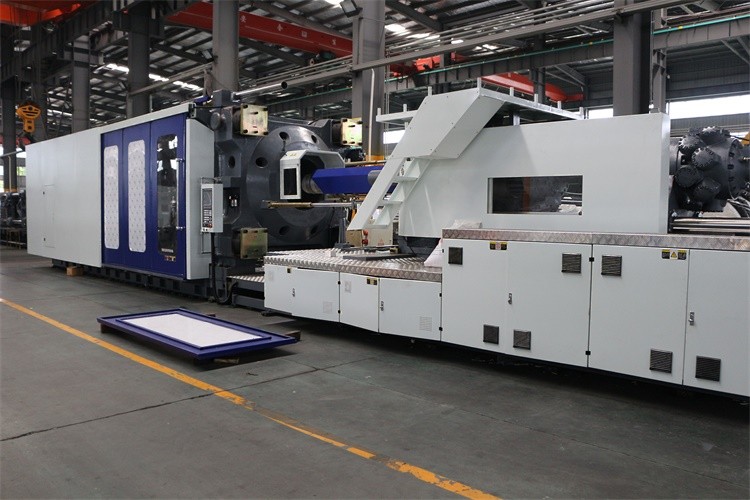

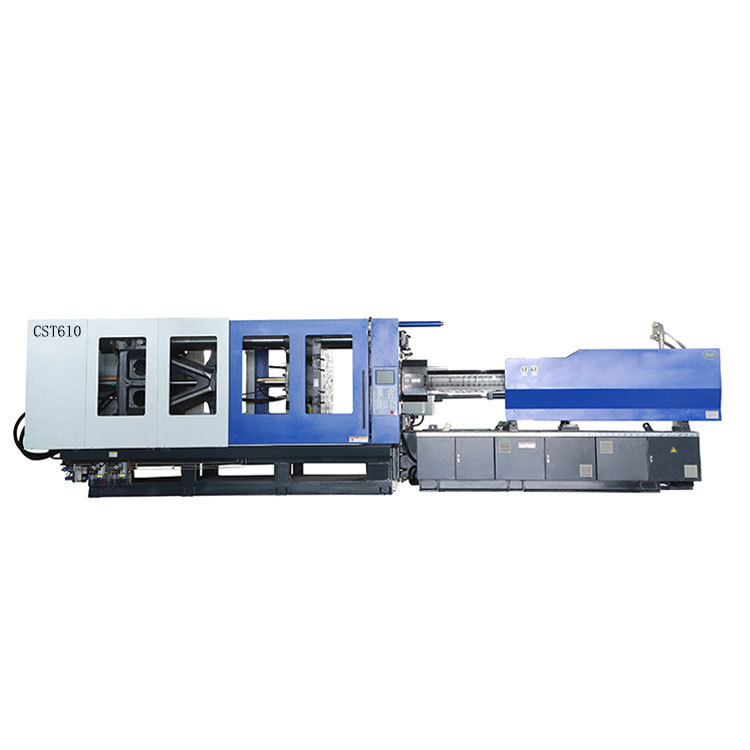

CST610-Ⅰ/3500 injection molding machine

CST610-Ⅰ/3500 injection molding machine

CST610-Ⅰ/3500 injection molding machine
CST610-Ⅰ/3500 injection molding machineCST610-Ⅰ/3500 injection molding machineCST610-Ⅰ/3500 injection molding machineCST610-Ⅰ/3500 injection molding machineCST610-Ⅰ/3500 injection molding machine
CategoriesInjectiion Molding Machine
AlbumView larger image
BrandCOSTAR
ConditionNew
TypePreform Injection
AutomaticYes
StyleHorizontal
Warranty1 year
colorany color client require
Update Time2019-09-18
Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine



CST610-/3500



a

B

Injection Unit



Screw diameter

mm

75

80

Screw L/D ratio

L/D

22.7

21.3

Injection capacity in theory

cm3

1855

2110

Injection weight(ps)

g

1688

1920

oz

59.5

67.7

Injection pressure

MPa

191

168

Injection rate

g/s

409

465

Plasticizing capacity

g/s

52

62

Screw speed

rpm

130

Clamping Unit



Clamping force

kN

6300

Moving mould-plate stroke

mm

870

Max.Mould height

mm

900

Min.Mould height

mm

350

Space between tie-bars

mm

900x850

Hydraulic ejector force

kN

200

Hydraulic ejector stroke

mm

260

Ejector number

n

17

Other



Pump pressure

MPa

16

Motor/Driving power

kW

55/30x2

Heating capacity

kW

28.85

Machine dimension

m

9.22 x 2.27 x 2.61

Machine weight

t

28

Oil tank capacity

L

1156




































Supply Ability

Supply Ability:       400 Set/Sets per Month

Packaging & Delivery

Packaging Details :   Wooded pallet package, standard ocean shipping package of injection molding moulding machine
Port :                         Shanghai Port/Ningbo Port
Lead time:                 30-45day


Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

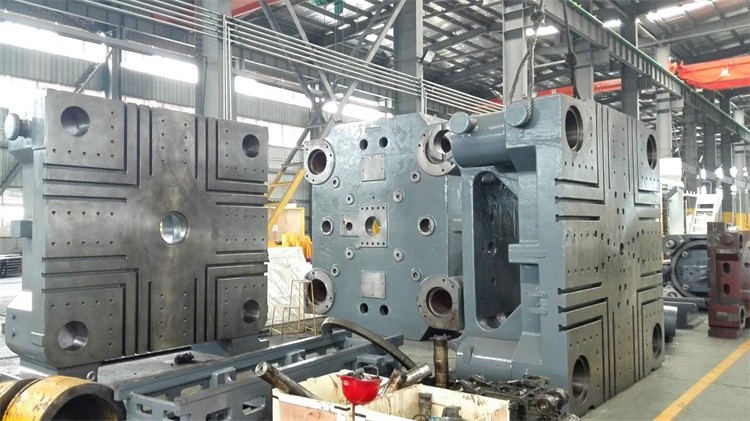

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
